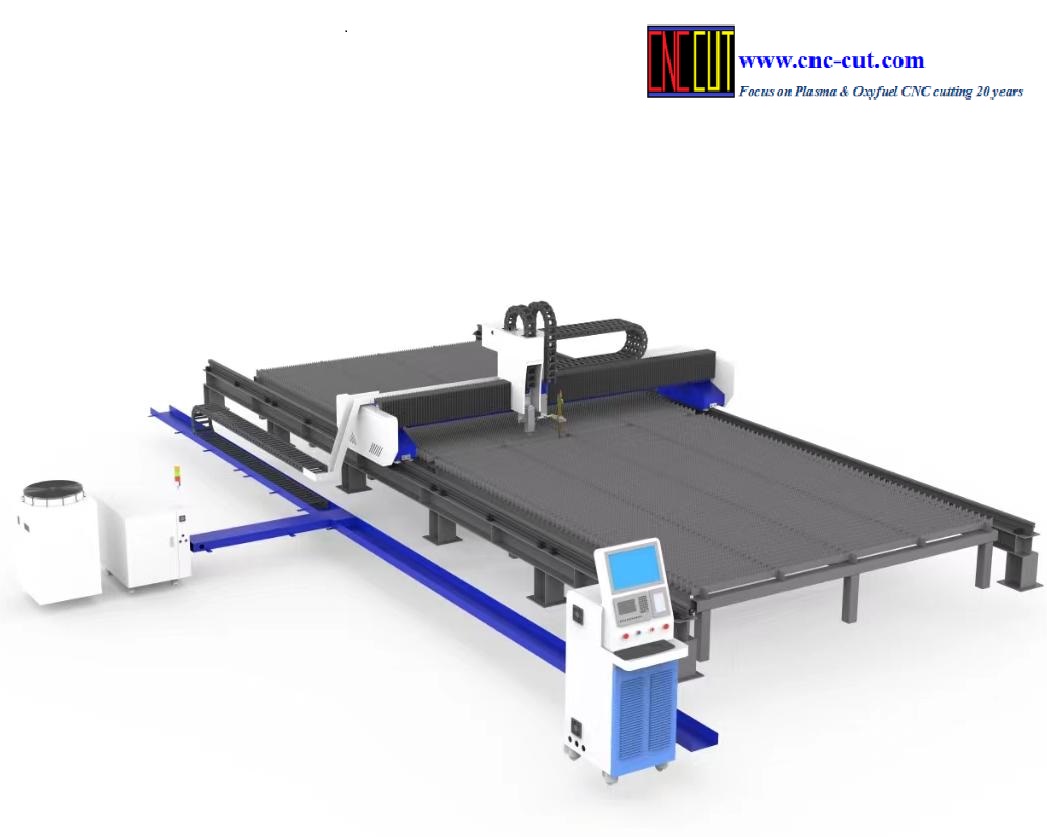

Heavy Gantry Fiber Laser CNC Cutting Machine

Heavy Gantry Fiber Laser CNC Cutting Machine

CCL-LF.G

1.Heavy gantry CNC laser cutting machine, no limited with cutting area and thickness; 2.High speed, high thickness and high precision cutting; 3.6000W, 12000W, 20000W, 30000W options.

Laser CNC cutter
Fiber laser cutting
Heavy Laser
Heavy Laser
Heavy Gantry Fiber Laser CNC Cutting Machine    Heavy Gantry Fiber Laser CNC Cutting Machine


Main Feature:

1.Heavy gantry CNC laser cutting machine, no limit with cutting area and thickness;
2.High speed, high thickness and high precision cutting;
3.6000W, 12000W, 20000W, 30000W various options.

4.Easy loading and un loading materials, lowe budeget, lower spending.


Main Specifications:

Main Specification

Type

CCL-LF.G

Electric Power Supply

220V±10% 50Hz±1%, 380V±10% 50Hz±1%

Complete Machine Power

100KW

Effetive Cutting Area of Sheet

14000mm×3500mm Or Customized

Driving Model

Rack and Pinion, Servo

Pinion Quantity

1000mm×36 Or as Customized

Cutting Speed

0-80m/min

Max Running Speed

80m/min

Cutting Thickness

0-100mm, Depending on Laser Source

X/Y Repeated Positioning Precision

±0.15mm/m

X/Y Max Accelaration

0.8G

X/YPositioning Precision

±0.2mm

Overall Machine Weight

About 15000kg

Max Loading Capacity of Platform

15000kg

Over Size of Overall Machine

16000mm×4500mm or as customized

Z Axis travel distance

300mm

Total Power Protective Level

IP54

Drawing format

DXF, IGS etc (Support AutoCAD,Coreldrawetc)

Working Gas

Air, N2, O2
