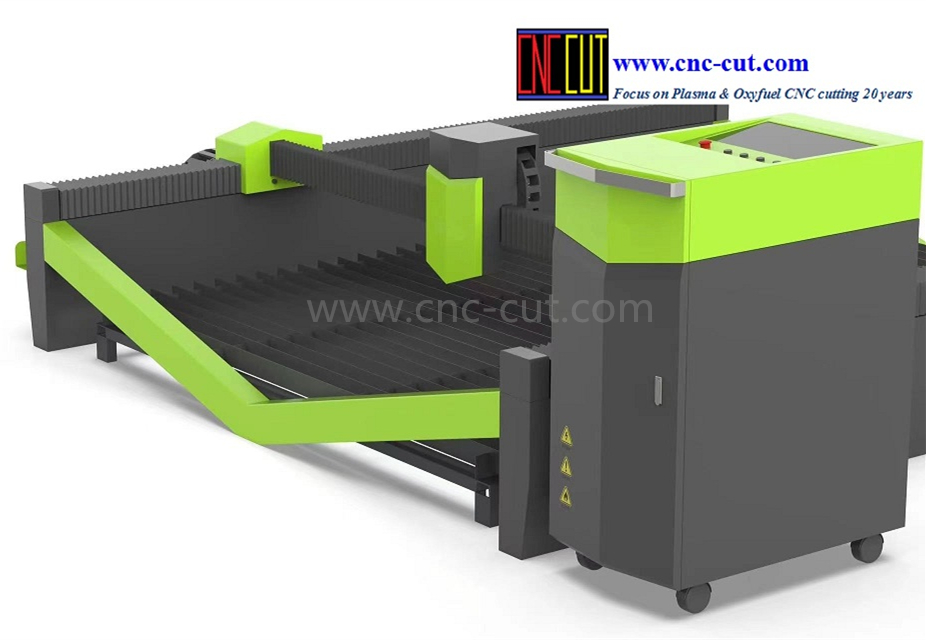

Economical Fiber Laser CNC Cutting Machine
CCL-LF
1.Economical metal CNC laser cutting machine; 2.Metal sheet high precision cutting; 3.1000W, 1500W, 2000W, 3000W options.
Main Specifications:
|
Main Specification |
|
|
Type |
CCL-FL3015C |
|
Electric Power Supply |
220V±10% 50Hz±1% |
|
Complete Machine Power |
≤10KW |
|
Effetive Cutting Area of Sheet |
3000mm×1500mm |
|
Driving Model |
Rack and Pinion, Servo |
|
Pinion Quantity |
1000mm×7.5 |
|
Cutting Speed |
1-20000mm/min |
|
Max Running Speed |
25m/min |
|
Cutting Thickness |
Depending on Laser Source |
|
X/Y Repeated Positioning Precision |
±0.15mm/m |
|
X/Y Max Accelaration |
1G |
|
X/YPositioning Precision |
±0.2mm |
|
Overall Machine Weight |
About 1500kg |
|
Max Loading Capacity of Platform |
1000kg |
|
Over Size of Overall Machine |
4000mm×2000mm |
|
Z Axis travel distance |
100mm |
|
Total Power Protective Level |
IP54 |
|
Drawing format |
DXF, IGS etc (Support AutoCAD,Coreldrawetc) |
|
Working Gas |
Air, N2, O2 |
