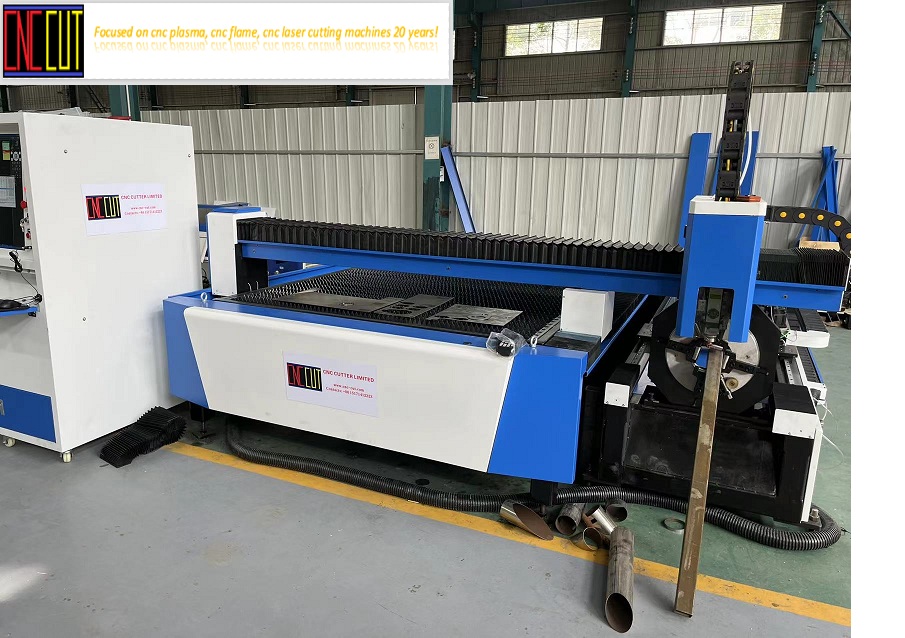

Fiber Laser CNC Cutting Machine

CCL-LF

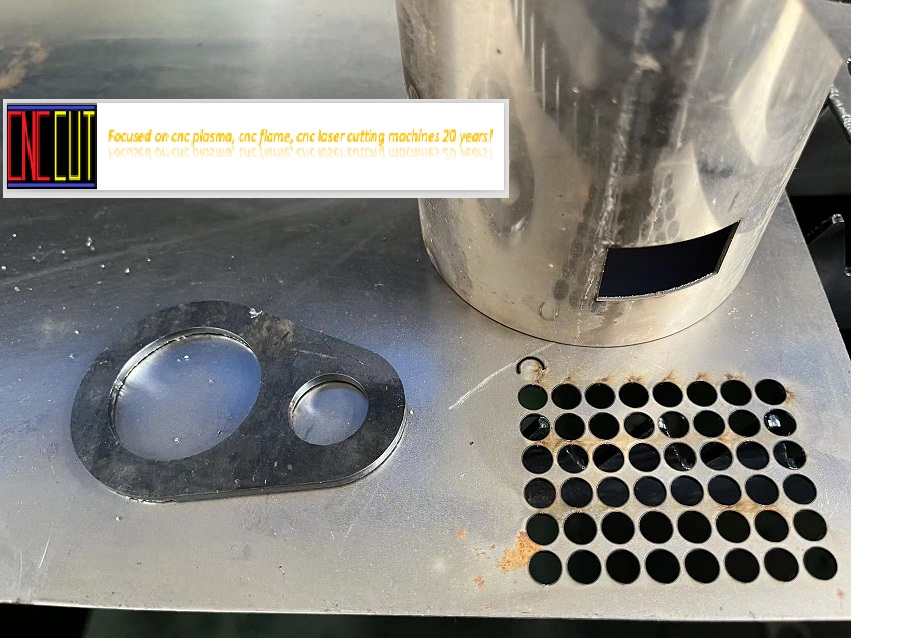

1.CNC laser cutting; 2.Metal sheet high precision cutting; 3.Metal pipe cutting is optional; 4.1000W, 1500W, 2000W, 3000W, 6000W options.

Laser CNC cutter

Fiber laser cutting

Main Specifications:

Main Tech Data
Type	CCL-FL3015
Power Supply	3~380 & 1~220V±10% 50/60Hz
Total Power	≤20KW
Effetive Sheet Cutting Area	3000mm×1500mm
Effetive Pipe Cutting Length	3000mm
Driver Model	Gear and Rack, Servo
Rack Quantity	1000mm×12
Cutting Speed	1-40000mm/min
Max Run Speed	60m/min
Cutting Thickness	Depending on Laser Source
X/Y Repeat Positionning Precision	±0.03mm/Whole Length
X/Y Max Accelaration	1 G
X/Y Positionning Precision	±0.05mm
Chuck Quantity	Dual
Chuck Diameter	160mm
W Axis Rotate Angle	No limited n*360°
Powertrain Feed Speed	60m
Pipe Diameter	20mm-160mm
Whole Machine Weight	Abt 3500kg
Metal Sheet Loading Weight	1000kg
Single Pipe Loading Wight	Abt 100kg
Whole Machine Space Need	4800mm×3000mm
Z Axis Traveling Distance	200mm
Power Protective Grade	IP54
Supported Drawings Format	DXF, IGS Etc (Support AutoCAD, Coreldraw Etc)
Working Gas	Air, N2, O2
