Pipe Plasma Cutting Machine

CCL-TP

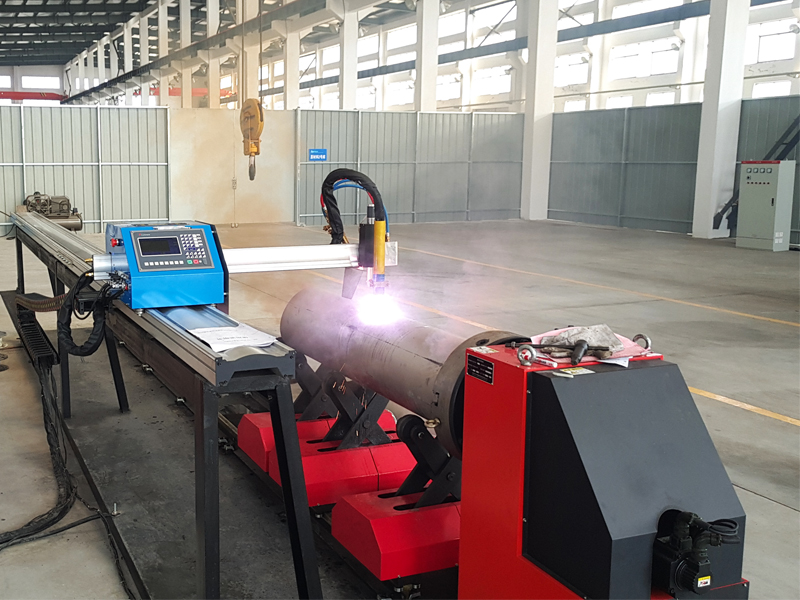

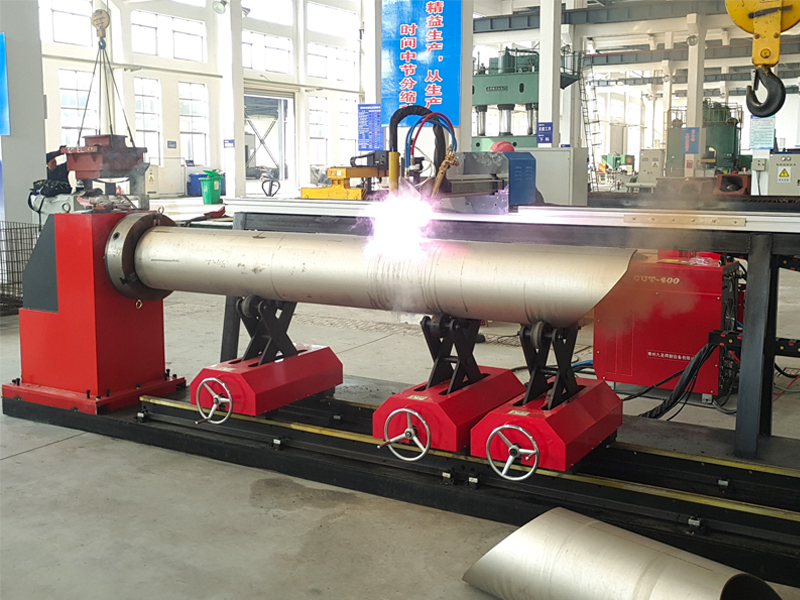

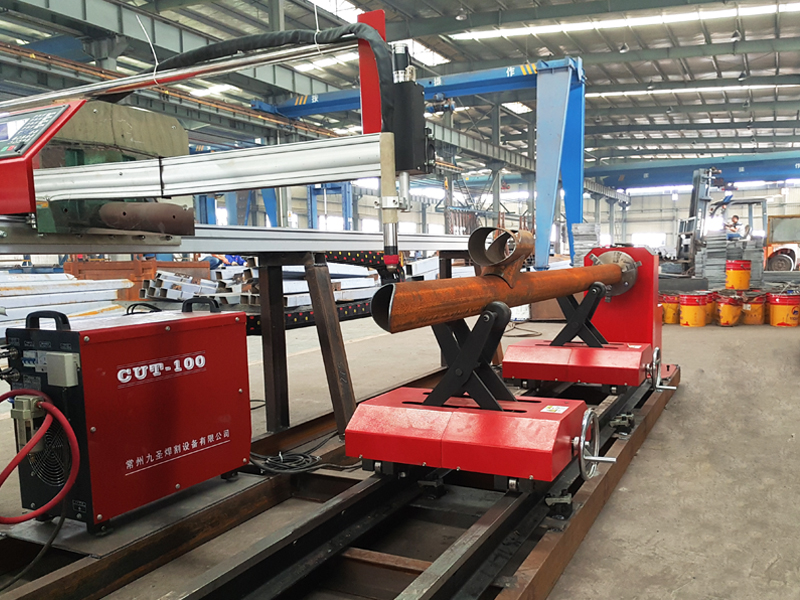

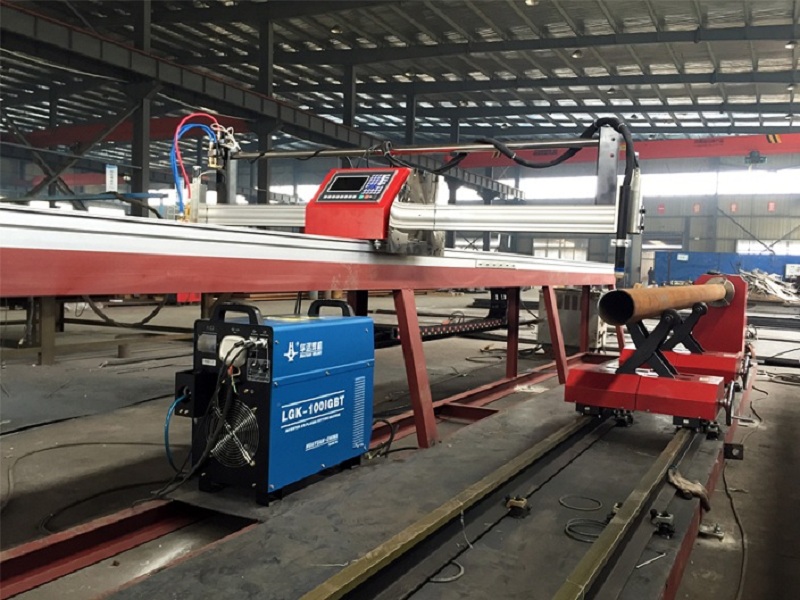

CCL-TP is with CNC plasma cutting, available for round metal pipe any profile cutting.

Round Metal Pipe Cutting

Pipe Profile Cutting

Item	Parameter
CNC Control Axis	2/3
Cutting pipe length	3-12m customized
Chuck Size	250#
Cutting pipe diameter	Φ40mm-Φ320mm（Or Customized）
Max loading weight	>800KG
Pipe Ovality	≤2%
Running precision	±0.2/m
Torch up down distance	130mm
Flame cutting thickness	Piercing：5mm-50mm/ Rim：150mm
Plasma cutting thickness	0.1-25mm
Cutting Speed	Flame cutting way 700mm/min Plasma cutting 0-6500mm/min

Adopts the portable cross structure, host and pipe are arranged in parallel.
Precision screw lifting device, with flame or plasma cutting torch as cutting way.
Steel pipe clamp adopts the chuck, support uses the screw drive, movable and can lift to support round pipe.
Cutting controlled by host movement and tube rotation, pipe end of the pipe hole automatic cutting.
The Chuck adopts imported servo motor, ensured running balance of the whole machine, long life simple operation and high efficiency.
Suitable for 40-325mm pipe diameter and does not require bevel function.
CNC CUTTER LIMITED TP Series portable CNC intersecting line cutting machine is a kind of steel pipe and non-ferrous metal pipe joint at the intersection, of the intersection hole, intersection line end, elbow (shrimp Festival) automatic calculation and cutting equipment.
The equipment is widely used in construction, steel structure, chemical industry, shipbuilding, mechanical engineering, metallurgy, electricity and other industries of the pipeline structure of the cutting process. Which this kind of processing in the past mostly using manual production model, scribing, manual lofting, manual cutting, artificial grinding and other backward and complicated operation process.
