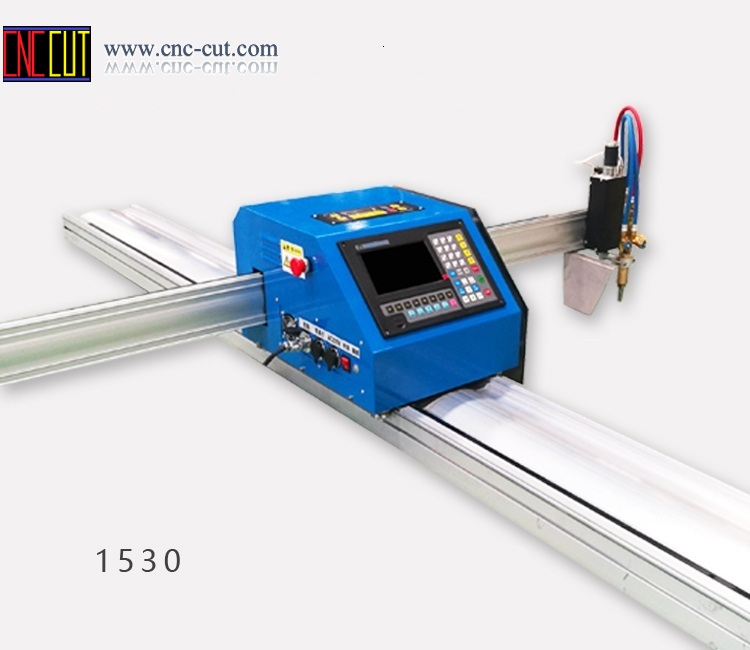

Mini CNC Plasma Cutting Machine
CCL-P
Mini structure cnc plasma cutting machine; Cutting area: effective cutting area 1.5*3.0m; Mini and smart, no fixed place occupation; The most cheapest cnc plasma cutting machine in the world.
*Overall miniature structure
*Operation is nimble, stable
*Good replacement of hand held flame cutting equipment, hand-held plasma cutting device.
Parameter:
|
|
Item |
Unit |
Parameter |
|
1 |
Beam span |
mm |
2200/2600 |
|
2 |
Rail length |
mm |
3000/6500（Customized available) |
|
3 |
Effective cutting span |
mm |
1500-2000 |
|
4 |
Effective cutting length |
mm |
2500/6000 |
|
5 |
THC lifting travel |
mm |
105 |
|
6 |
Cutting Speed |
mm/min |
0-6000 |
|
7 |
Empty moving speed |
mm/min |
0-8000 |
|
8 |
Repeat position precision |
mm |
±0.2 |
|
9 |
Flame cutting thickness |
mm |
6-150 |
|
10 |
Plasma cutting thickness |
mm |
0.1-25 or depending on plasma generator |
|
11 |
Flame cutting speed |
mm/min |
50-900 |
|
12 |
Plasma cutting speed |
mm/min |
100-6000 |
Advantages compared with other suppliers:
- Structure Made of 6061 hard aluminum alloy, good balance performance, light weight, small running inertia, strong stability, and good shape.
- CNC Support Base Made of 10mm hard aluminum alloy plate, self-light, good durability.
- AIRTAC solenoid valve, bear long time 1.4Mp high pressure situation, stable work, efficient, durable.
- Drive mode Driven by 57# precision stepping motor, stable and fast running speed.
- Gear/rack All high-precision gears and racks (accuracy grade 7), stable at high speed, and each rack uses surface treatment, is not easy to deform.

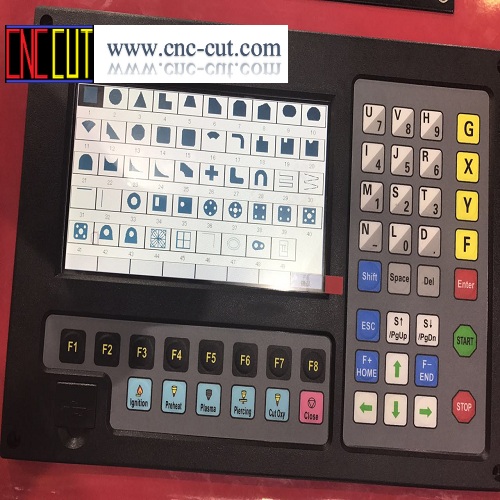

- CNC control system F-2100B numerical control system, the operation interface is simple, easy to learn, and not easy to crash. Plasma auto torch height controller, make cutting easy and safe.
- Transmission bearing adopts Φ39mm high-precision anti-rust bearing shaft, each bearing can bear 200KG weight.
- Automatic nesting software with automatic co-edge; automatic bridging, etc.
- Overall packaging Customized lock-type packaging according to exporting requirements, increase crashworthiness when transporting equipment, convenient packaging, beautiful appearance.
