CNC Plasma Cutting Machine For Square Pipe
CCL-TS

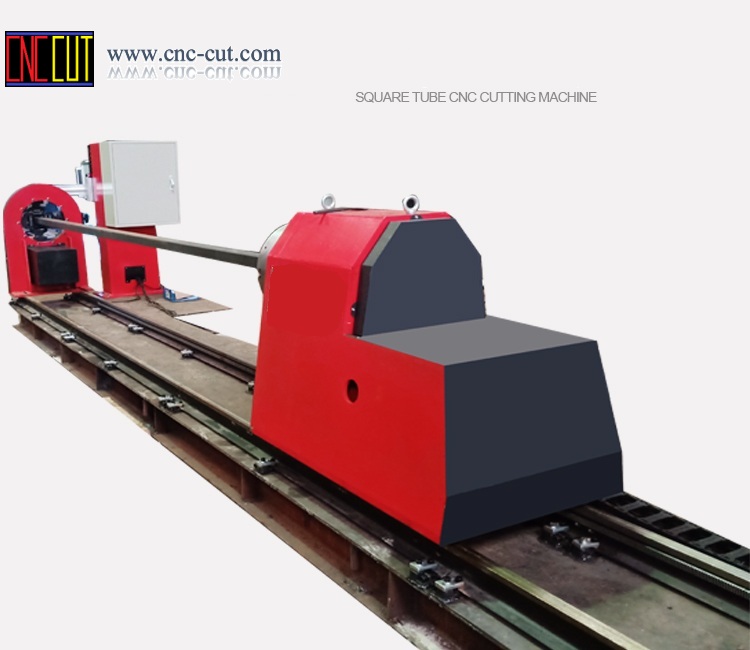

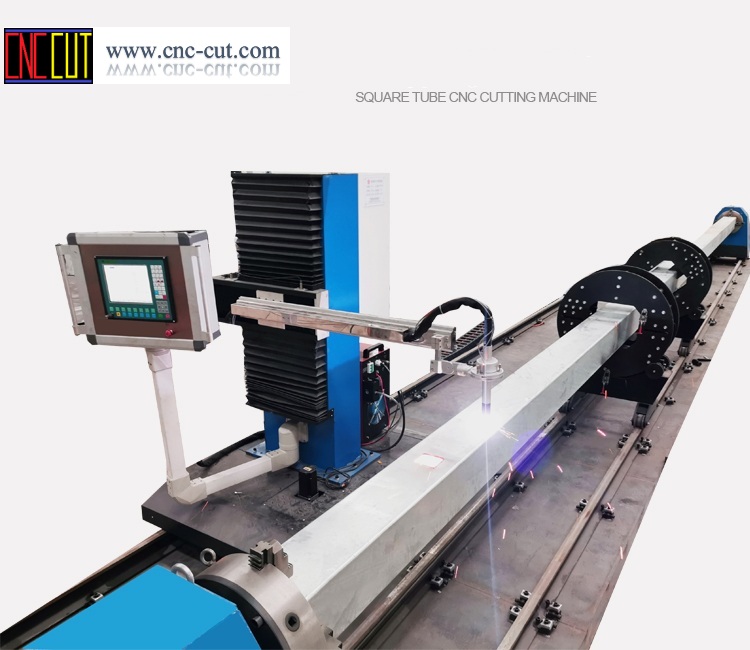

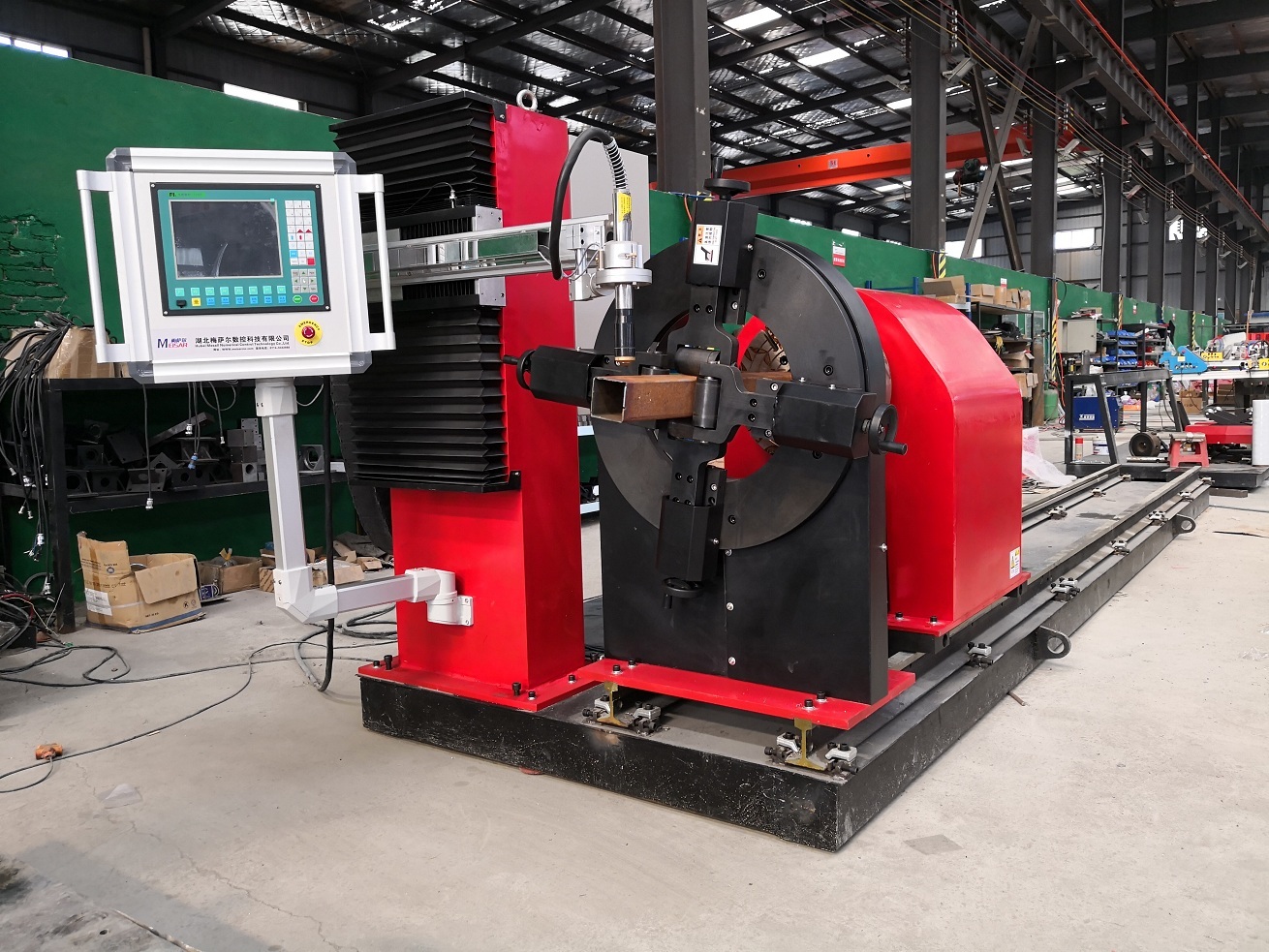

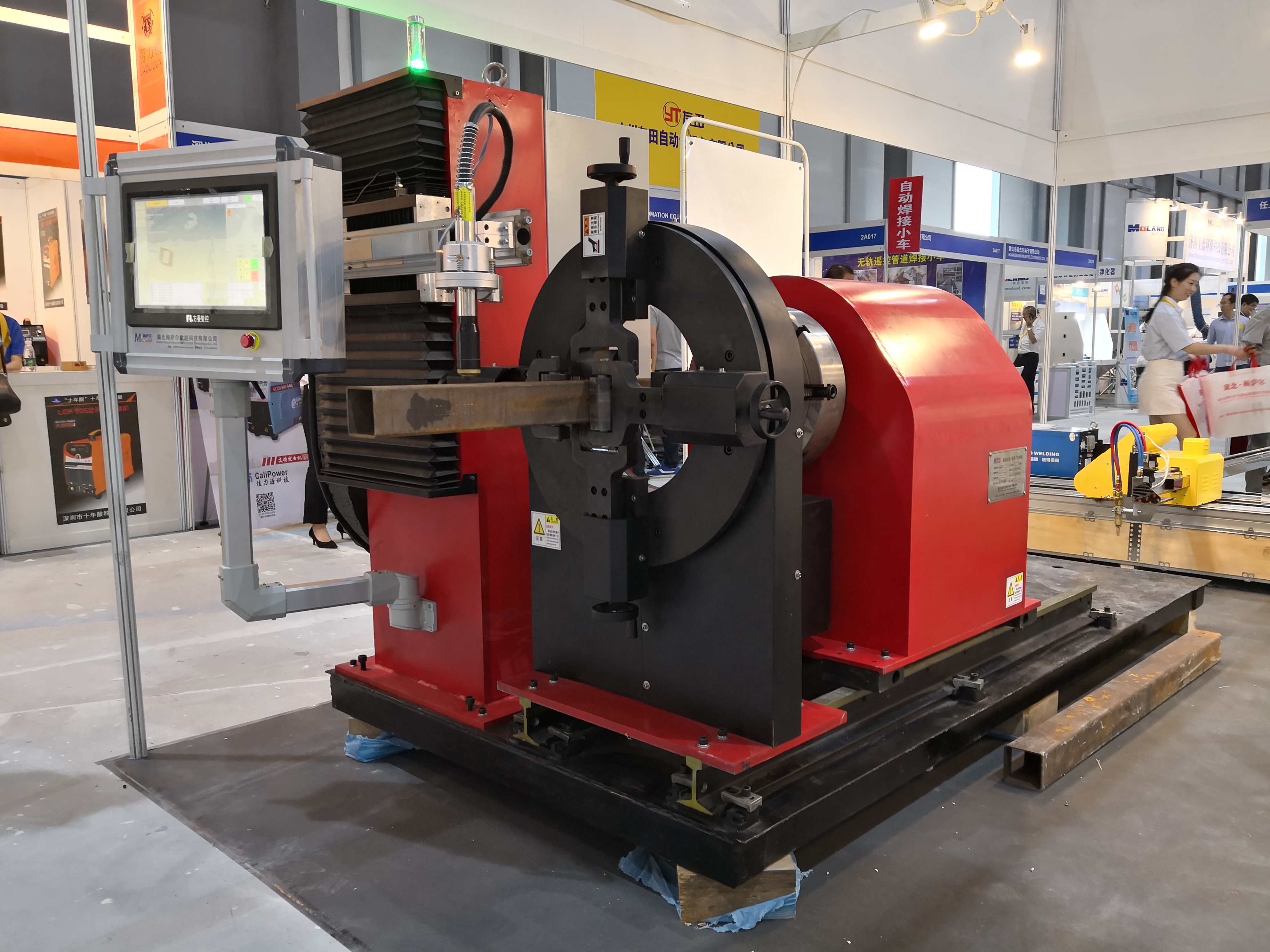

Square pipe plasma cnc cutting machine CCL-TS, Suitable for rectangle metal pipe diameter 40*40mm-240*240mm.
*CNC plasma cutting and or flame cutting.
*Overall compact miniature structure
*Can be for round and square pipe cutting both.
*Suitable for rectangle metal pipe size 40*40mm-240*240mm.
*Not suitable random bevel.
Parameter:
|
Item |
Parameter |
|
CNC Control Axis |
4 |
|
Cutting pipe length |
6-12m or customized |
|
Chuck Size |
500# |
|
Cutting pipe diameter |
40*40mm-240*240mm (or customized） |
|
Max loading weight |
>3000KG |
|
Pipe Ovality |
≤1% |
|
Running precision |
±0.2/m |
|
Torch up down distance |
210mm |
|
Flame cutting thickness |
Piercing：5mm-50mm/ Rim：150mm |
|
Plasma cutting thickness |
0.1-25mm |
|
Cutting Speed |
Flame cutting way 700mm/min Plasma cutting 0-6000mm/min |
Introduction:
- CCL-TS series Square tube CNC Special-shaped cutting machine is specifically for the end of the steel tube automatically calculated and cut equipment. The equipment can be widely used in mechanical, petrochemical, construction, shipbuilding bridge tower and metallurgical pressure vessels and other industries of pipe structural parts cutting processing.
- CCL-TS CNC Square tube cutting machine is with flame/plasma thermal cnc cutting, finally get the parts for welding a molding, high precision and efficiency.
- 4-axis linkage control system is a 4-axis linkage control system based on many years ' experience in intersection line CNC cutting system.
- It is mainly used in square tube, as well as round tube if need.
- Using DXF or DWG format files, without the need to disassemble and auxiliary calculation can realize "three-dimensional node expansion" automatic programming.
- Convenient parametric programming, optimization nesting, multi-sections continuous cutting, extra-long parts automatic separation, lead tangent calculation, tube dynamic three-dimensional simulation, panel slot technology and a wealth of process management modules.
