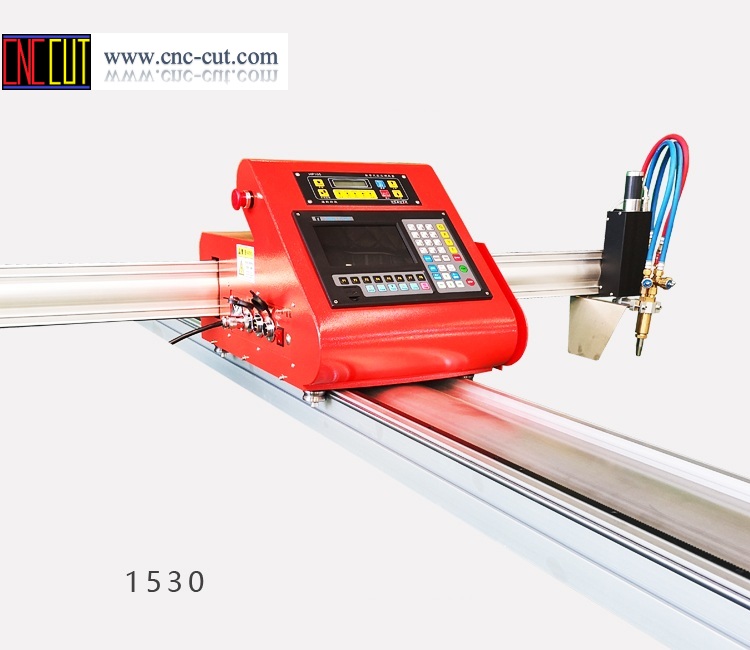

Small flame cnc cutting machine
CCL-P
Portable CNC flame cutter, also called mini flame cutter or small CNC flame cutter or Honeybee CNC cutter; It is the most cheapest cnc flame cutter machine in the world.
Parameter:
|
|
Item |
Unit |
Parameter |
|
1 |
Beam span |
mm |
2200/2600 |
|
2 |
Rail length |
mm |
3000/6500 (Customized) |
|
3 |
Effective cutting span |
mm |
1600/2000 |
|
4 |
Effective cutting length |
mm |
2500/6000 |
|
5 |
THC lifting travel |
mm |
105 |
|
6 |
Cutting Speed |
mm/min |
0-3000 |
|
7 |
Empty moving speed |
mm/min |
0-8000 |
|
8 |
Repeat position precision |
mm |
±0.2 |
|
9 |
Flame cutting thickness |
mm |
6-85 |
|
10 |
Plasma cutting thickness |
mm |
0.1-25 (Optional) |
|
11 |
Flame cutting speed |
mm/min |
50-900 |
|
12 |
Plasma cutting speed |
mm/min |
100-6000 (Optional) |
Advantages compared with other suppliers:
1. Structure Made of 6061 hard aluminum alloy, good balance performance, light weight, small running inertia, strong stability, and good shape.
2. CNC Support Base Made of 10mm hard aluminum alloy plate, self-light, good durability.
3. Solenoid valve Taiwan AIRTAC solenoid valve, bear long time 1.4Mp high pressure situation, stable work, efficient, durable.
5. Gear/rack All high-precision gears and racks (accuracy grade 7), stable at high speed, and each rack uses surface treatment, is not easy to deform.
6. CNC control system F-2100B numerical control system, the operation interface is simple, easy to learn, and not easy to crash.
7. Transmission bearing adopts Φ39mm high-precision anti-rust bearing shaft, each bearing can bear 200KG weight.
8. Automatic nesting software with automatic co-edge; automatic bridging, etc.
9. Overall packaging Customized lock-type packaging according to exporting requirements, increase crashworthiness when transporting equipment, convenient packaging, beautiful appearance.
