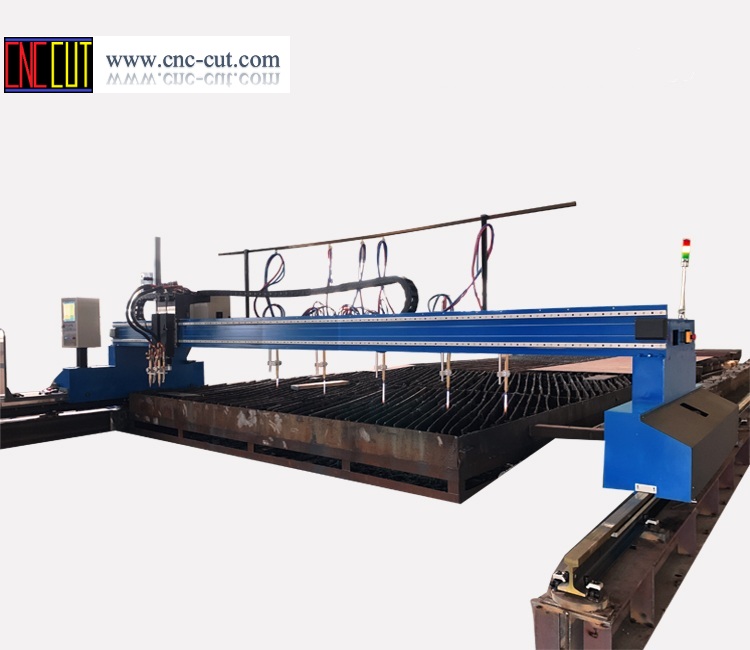

Multiple Heads Gantry Flame Cutting Machine
CCL-GH

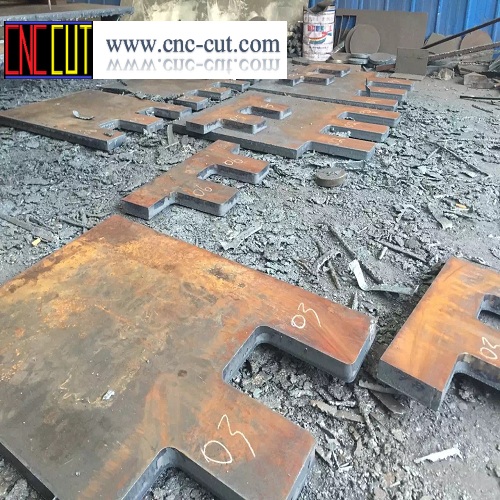

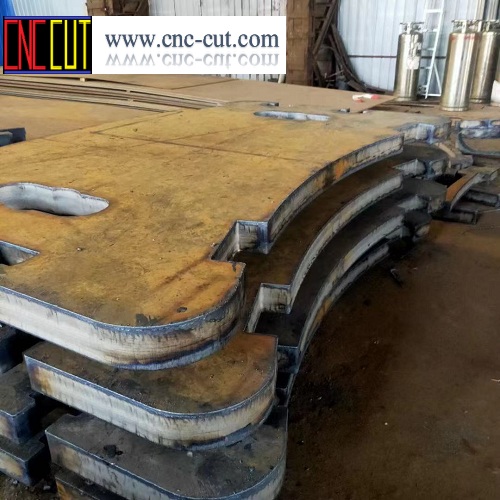

Multiple heads CNC flame cutting, multiple heads strip cutting, also available to add multiple plasma CNC cutting heads. The cutting area is as your required, such as cutting area: 2.0m*4.0m, 3.0m*6.0
1.Cutting area: 2.0m*4.0m, 3.0m*6.0m, 4m*8.0m etc as your required.
2.Heavy gantry structure, stable, durable, high precision.
3.CNC flame cutting head quantity is as required.
4.Flame Strip cutting heads available to add, plasma cutting heads available to add.
Parameter
|
|
Item |
Unit |
Parameter |
|
1 |
Rails center distance |
mm |
3000-7000（Customized available) |
|
2 |
Rail length |
mm |
8000（Customized available) |
|
3 |
Effective cutting width |
mm |
Rails center distance-800mm |
|
4 |
Effective cutting length |
mm |
Rail length-2000mm |
|
5 |
Torch unit/carriage quantity |
Set |
As customer requirement |
|
6 |
THC travel distance |
mm |
200 |
|
7 |
Cutting Speed |
mm/min |
0-6500 |
|
8 |
Empty moving speed |
mm/min |
0-10000 |
|
9 |
Cutting thickness |
mm |
Plasma: 0.1-75mm Mild steel, stainless steel, Aluminium, copper etc Flame: 6-300mm mild and medium steel. |
Our advantage compared with the other suppliers:
- Adopts the box welding structure, material uses 8mm national standard steel plate after laser cutting.
- Frame upper surface and back used the bending machine to break into 90 degrees arc, this can greatly increase the whole machine beam rigidity, lengthens the service life.
- The front of frame is with 18mm steel plate after welding with the entire surface of the planer, can greatly reduce the total deformation of the machine, improve the accuracy of the machinery.
- The whole machine is by heat treatment to eliminate stress, with good rigidity, not deformation, high precision, light weight, small inertia characteristics.
- Longitudinal drive frame (support frame): The two ends are equipped with a horizontal guide wheel, which can adjust the clamping degree of the eccentric on the bottom of the drive frame, so as to keep the whole machine in a stable direction in the movement.
- Equipped with track dust collectors, at any time to scrape debris accumulated on the guide surface.
- Longitudinal and transverse drive all have precision gear rack.
- Cross-guide rail using precision cold-drawn guide plate, longitudinal guide is train rail-type rail through the precision processing.
