High Definition CNC Plasma Cutting Machine
CCL-G.HD

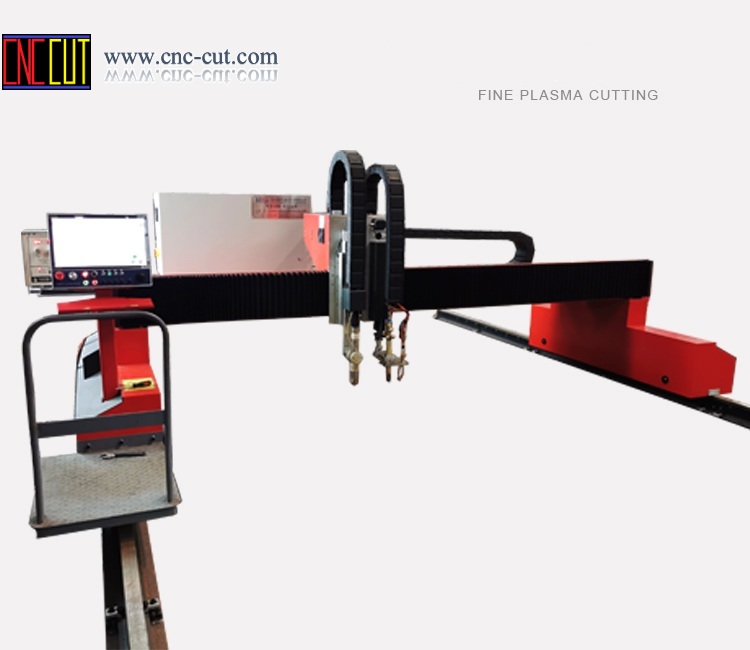

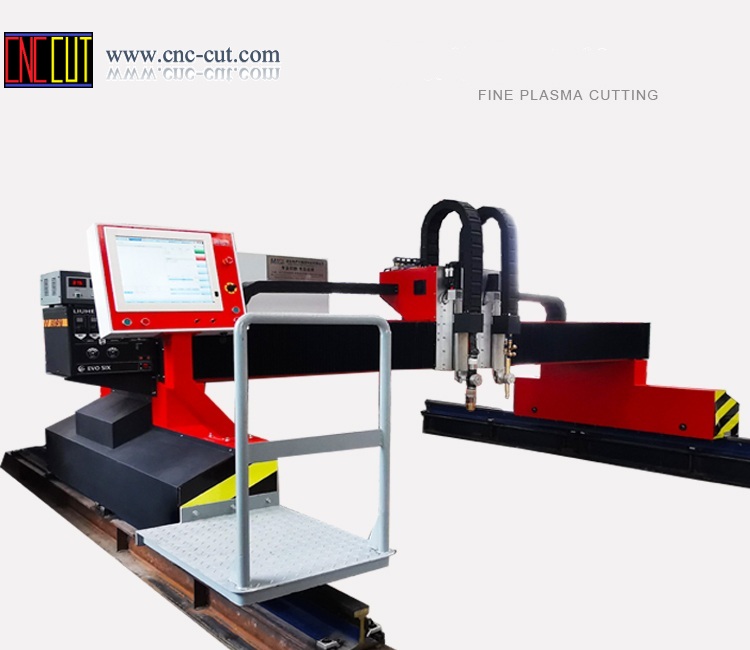

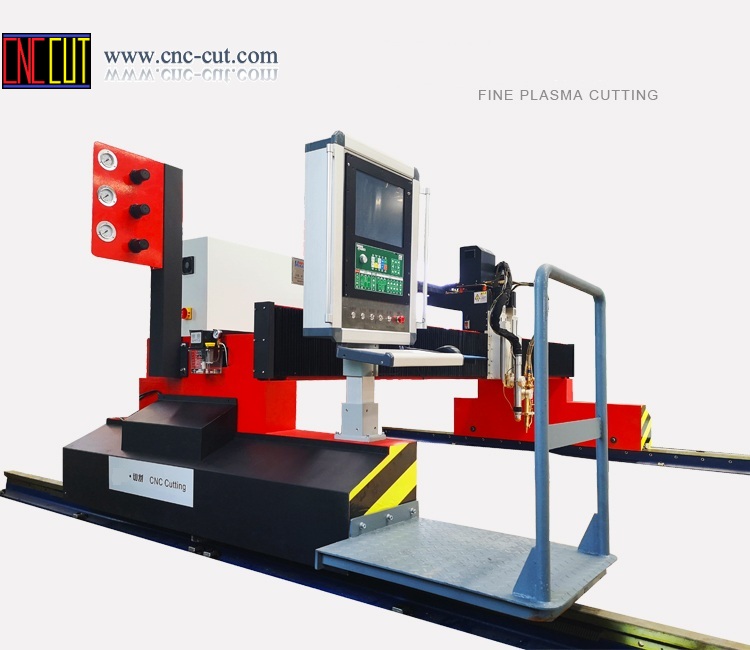

CCL-G.HD High Definition CNC plasma cutting machine depends on Hypertherm high definition plasma generator, Hypertherm plasma torch height controller, Hypertherm CNC to offer you a high precision cutt
Parameter
|
|
Item |
Unit |
Parameter |
|
1 |
Rails center distance |
mm |
3000-7000（Customized) |
|
2 |
Rail length |
mm |
8000（Customized) |
|
3 |
Effective cutting width |
mm |
Rails center distance-800mm |
|
4 |
Effective cutting length |
mm |
Rail length-2000mm |
|
5 |
Torch unit/Carriage quantity |
Set |
As customer requirement |
|
6 |
THC Travel distance |
mm |
200 |
|
7 |
Cutting Speed |
mm/min |
0-6500 |
|
8 |
Empty moving speed |
mm/min |
0-10000 |
|
9 |
Cutting thickness |
mm |
Plasma: 0.1-75mm Mild steel, stainless steel, Aluminium, copper etc Flame: 6-300mm mild and medium steel. |
Advantage:
- 1. Adopts the whole welding heavy and precise structure, material uses 8mm national standard steel plate after laser precessing.
- The front of frame is with 18mm steel plate after welding with the entire surface of the planer, can greatly reduce the total deformation of the machine, improve the accuracy of the machinery.
- The whole machine is by heat treatment to eliminate stress, with good rigidity, not deformation, high precision, small inertia characteristics.
- Longitudinal and transverse drive all have precision bias gear rack and linear guide, auto oil, auto clean.
- Longitudinal drive frame (support frame): The two ends are equipped with a horizontal guide wheel, which can adjust the clamping degree of the eccentric on the bottom of the drive frame, so as to keep the whole machine in a stable direction in the movement.
- International famous components: Hiwin linear guide and racks, Hypertherm high definition plasma generator, Hypertherm arc glide THC, Hypertherm CNC System etc.
